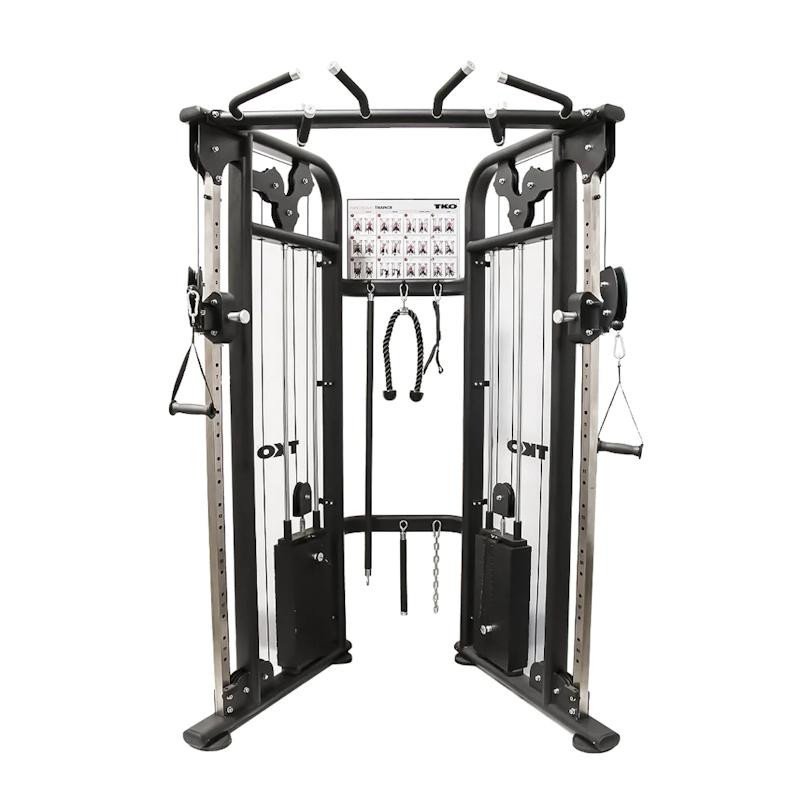

TKO Commercial Functional Trainer

Dual-Stack Cable Trainer for Commercial Full-Body Exercise

The TKO Commercial Functional Trainer combines two independently adjustable pulley columns for presses, rows, flyes, raises, curls, extensions, rotations, and lower-body cable movements. Each side can support unilateral, bilateral, alternating, or offset resistance patterns. A dual-roller adjustment mechanism helps the pulley housings move smoothly between positions, while stainless-steel uprights create durable contact surfaces for frequent pulley height changes in busy commercial training environments throughout the day.
Two Shrouded Stacks with a Two-to-One Ratio:
The TKO 9050 Functional Trainer uses a 2:1 cable ratio, so the effective resistance at each handle is approximately half the selected stack weight before other system variables. This configuration provides longer cable travel and smaller resistance changes for controlled functional exercise. Both stacks are shrouded at the rear, and the numerous column positions let users align the cable for movements performed from high, middle, and low starting points.
Included Attachments and On-Machine Storage Hooks:
The TKO Dual-Stack Cable Machine includes long and short bars, a deluxe triceps rope, an ankle strap, molded handles, chains, and connecting hardware. Integrated hooks keep the primary attachments near the station, while multi-grip handles expand upper-body exercise choices. This commercial functional trainer suits schools, studios, athletic centers, hotels, apartment gyms, and fitness clubs. Freight access and professional on-site assembly and placement planning are recommended.
Quick Buying Guide
Order Includes: (1) TKO Commercial Functional Trainer and Manufacturer Accessory Package
Included Attachments: Long Bar, Short Bar, Deluxe Triceps Rope, Neoprene Ankle Strap, Two Molded Handles, Chains, and Connecting Hardware
Weight Stacks: Two 210 lb Stacks
Resistance Ratio: 2:1; Effective Handle Resistance Is Approximately Half the Selected Stack Weight
Pulley Positions: 22 per Column
Column Uprights: 2-Inch Square Stainless Steel
Accessory Storage: Six Hooks
Planning Note: Verify ceiling height, freight access, floor loading, and assembly requirements
Assembly: Required
Use: Home or Commercial
Key Product Features:
Independent Dual Stacks: Two 210 lb stacks support bilateral, unilateral, and two-user exercise setups.
2:1 Resistance Ratio: Each handle delivers approximately half the selected stack weight with longer cable travel.
Twenty-Two Positions per Column: Extensive height adjustment supports low, mid, and high cable movements.
Dual-Roller Housings: The pulley carriages reposition smoothly along stainless steel uprights.
Rear Stack Shrouds: Protective panels separate users from the moving weight stacks.
Complete Accessory Package: Multiple handles, bars, rope, strap, and chains support immediate exercise variety.
Product Specifications:
SKU
9050/9050-BK
Product Type
Commercial Functional Trainer
Weight Stacks
(2) 210 lb Stacks
Resistance Ratio
2:1
Maximum Effective Resistance
Approximately 105 lbs per Handle
Column Positions
22 per Column
Uprights
2-Inch Square Stainless Steel Tubing
Accessory Hooks
6
Dimensions
67.5″ W x 44.5″ D x 88″ H
Machine Weight
880 lbs
Assembly
Required
Use
Home or Commercial
